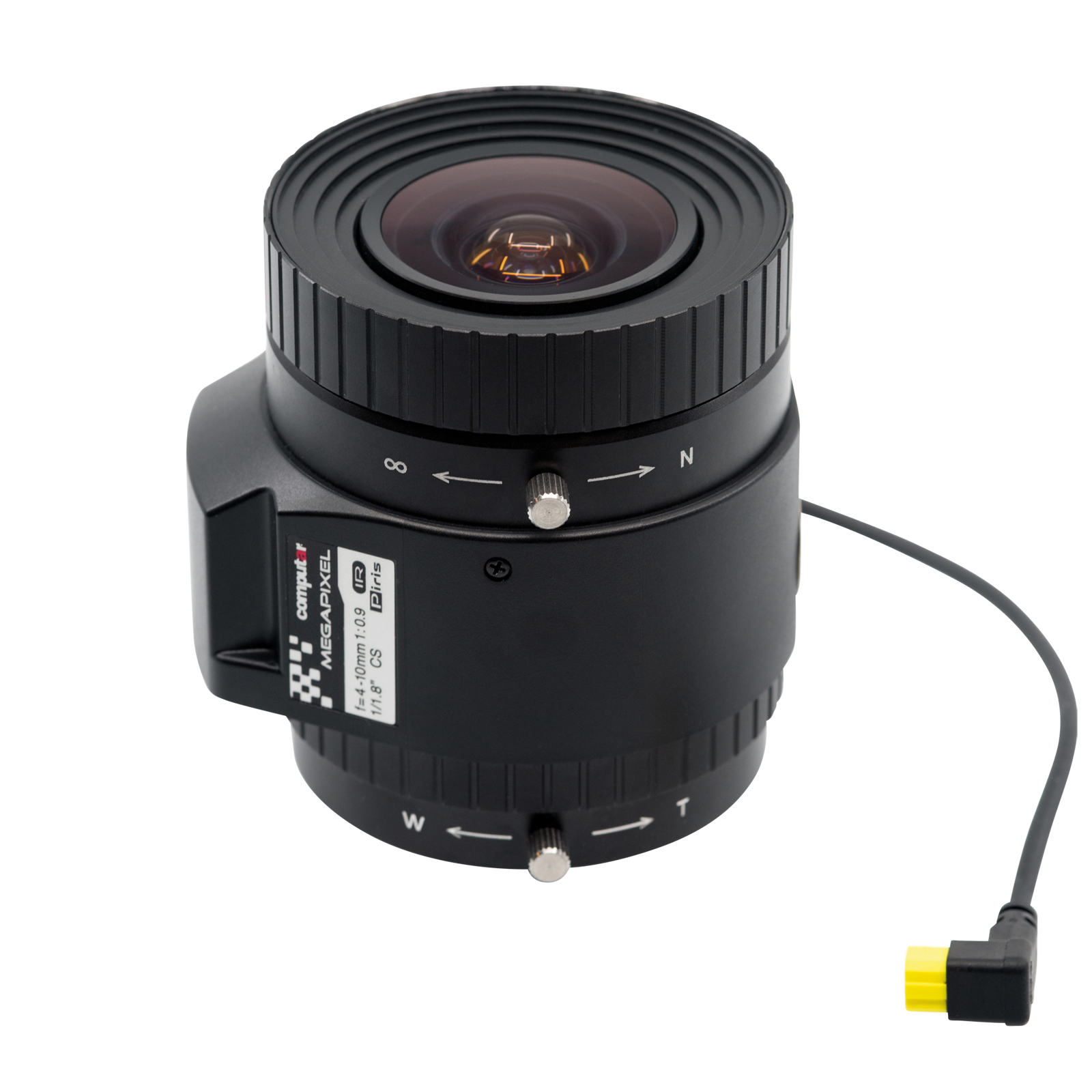

Lens CS 4-10 mm F0.9 P-Iris

Extreme light sensitivity with precise iris control

  • IR-corrected lens
  • F-number 0.9
  • Supports sensors up to 1/1.8″
  • Focal length 4-10 mm
SKU: 02448-001 Categories: , , Tags: ,

Description

Designed to handle low light environments

Lens CS 4-10 mm F0.9 P-Iris is designed for extreme light sensitivity and can handle low-light environments as low as 0.02 lux for color images and 0.004 lux for black and white images. Having the P-iris capability, it addresses the imperfections of an auto-iris lens, and provides improvements in contrast, clarity, resolution, and depth of field. Being IR-corrected, no focus adjustment is required when shifting the camera between day and night mode using the IR-cut filter.

Lens CS 4-10 mm F0.9 P-Iris:

Camera Image sensor Angle of view
AXIS P1375 1/2.8″ 81-34°
AXIS P1375-E* 1/2.8″ 81-34°
AXIS P1377 1/2.7″ 75-31°
AXIS P1377-LE* 1/2.7″ 75-31°
AXIS P1378 1/1.8″ 123-47°
AXIS P1378-LE* 1/1.8″ 110-47°
AXIS Q1615 Mk III 1/2.8″ 81-34°
AXIS Q1615-LE Mk III* 1/2.8″ 81-34°
AXIS Q1656 1/1.8″ 122-47°
AXIS Q1656-LE* 1/1.8″ 109-47°
* Angles measured when the lens is mounted in IK10 position.

Ordering

02448-001 LENS CS 4-10MM F0.9, Optional extremely light-sensitive lens. CS-Mount 4-10 mm F0.9 with P-Iris. IR-corrected.
Compatible with AXIS Q1656/-B/-BE/-BLE and AXIS P1375/-E, AXIS P1377/-LE.

Lens CS 4-10 mm F0.9 P-Iris data sheet
