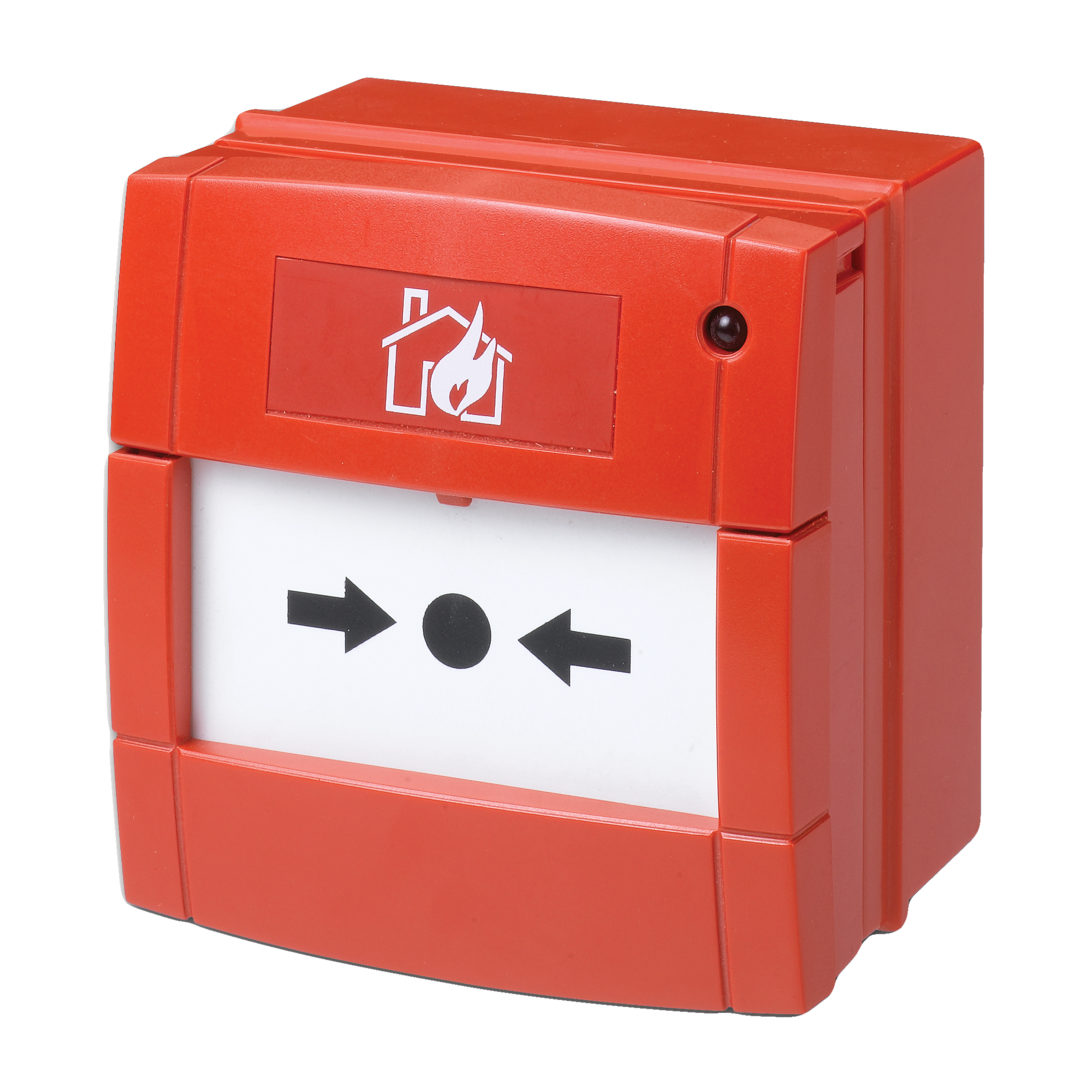

ZR485-3 Radio Call Point with Battery Pack

ZR485-3 Radio Call Point with Battery Pack (Red)

ZR485-3 RADIO CALL POINT COMPLETE WITH BATTERY PACK (RED)

  • Fully addressable
  • Full wireless device status monitoring
  • 2-way radio communication
  • 5 year battery life at normal conditions
  • Dual battery supply
SKU: ZR485-3 Categories: , , Tag:

Description

The ZR485-3 Radio Call Point with Battery Pack is a wireless, indoor, manual call point operating on 868 MHz. The ZR485-3 is operated either by pressing a resettable element (optional) or by breaking a frangible glass with finger pressure. The glass element has a clear vinyl coating on the front surface to prevent operator injury and to inhibit the release of loose fragments as the glass is broken. Both operating elements are easily interchangeable.

Every wireless device controlled through the RLM interface is assigned its own IDENT address with which the main control panel communicates with it. This provides the same system functionality to wireless as well as traditionally hard-wired devices.

Wireless Systems

The ZR485-3 Radio Call Point with Battery Pack provides a manual means of initiating a fire alarm in areas where the installation of hard wiring is not an option. The unit is controlled from the main fire alarm panel via a loop wired radio interface module. This arrangement allows both wireless and hardwired devices to be seamlessly located on the same loop wiring.

The ZR485-3 forms part of an extensive range of wireless fire alarm devices that includes both smoke/heat detection as well as notification devices, sounder/beacons and IO units.

Suitable for use on installations specifying the recommendations of BS 5839 Part 1, the call point fully meets the requirements of European Standard EN54 Part 11 and is CPD certified.

System Testing

The ZR485-3 is designed for surface mounting and is supplied complete with matching back box. System testing is carried out by using a special key supplied with the call point. When inserted into a slot in the base of the call point moulding, the device is trigged to operate automatically.

Rated at IP42 the ZR485-3 is constructed of ABS plastic and is intended for indoor applications. A red LED indicator, prominently positioned on the call point front plate, flashes when the unit is operated.

  • Range in excess of 150 metres
  • No external aerials
  • System test facility via test key
  • CPD certified

Ordering

ZR485-3 Ziton Radio Call Point c/w Battery Pack (Red), 868Mhz

Ziton ZR485-3 datasheet
