Description

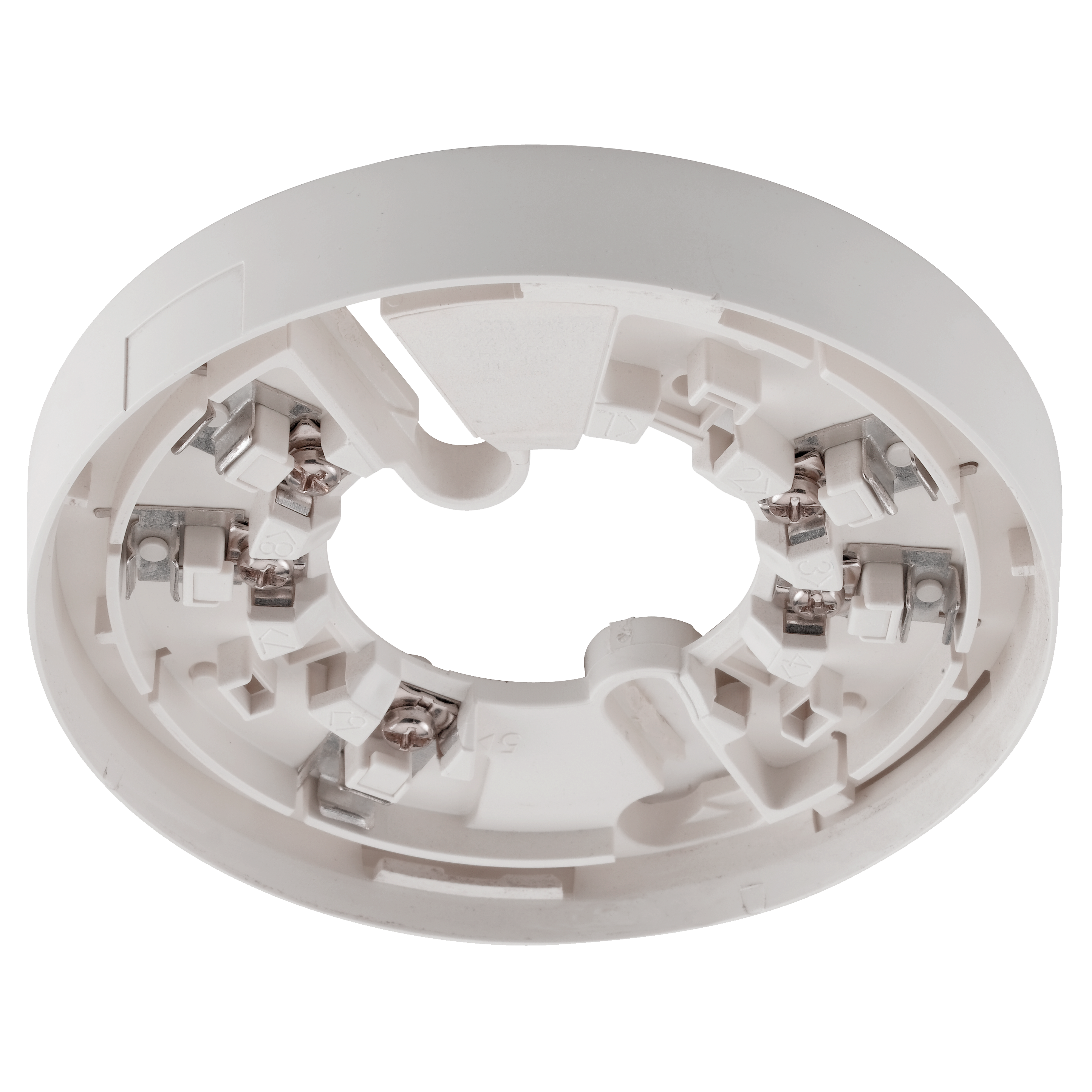

The Ziton Z6-BS1-P is a Polar White conventional fire detector base. It allows any Z600 conventional detector to be removed or replaced without disconnecting wiring from detector terminals. Detectors plug into the base units with a simple twist and lock action, allowing quick and easy removal for cleaning and servicing, or reselection of detector type should the usage of the protected area change. Designed for systems where head out continuity is not a requirement, detector line monitoring is provided by a suitable end of line resistor, connected across the out terminals of the final device in the circuit.

Forming an integral part of the overall detector assembly, the base is provided with slots for screw fixing to either surface wiring plates or conduit boxes with screw fixing centres between 50 and 90 mm. The Ziton Z6-BS1-P features robust wiring terminals with captive clamping washers to ensure secure wiring termination. They are of shallow design with ample space to accommodate cables of all types. Terminals are provided inside the moulding for the connection of a remote LED when required.
