TruVision TVT-2402

HomeTruVisionVideo SurveillanceTruVision TVT-2402
TruVision TVT-2402

TruVision TVT-2402

TruVision HD-TVI Analog Turret Camera, PAL 3MPX, 2.8 to 12mm  Motorized Lens, True D/N, WDR, 40m IR, Dual Output 960H Monitor or HD-TVI, Coax & button OSD control, 12VDC, IP66

  • 3MPX resolution
  • HD-TVI technology for transmitting HD quality video over existing coax cable
  • True day/night functionality and infrared illuminators with Smart IR function for capturing images in various lighting scenarios
  • IR range of up to 40 m
  • IP66 environmental rating
SKU: TVT-2402 Categories: , Tags: ,

Description

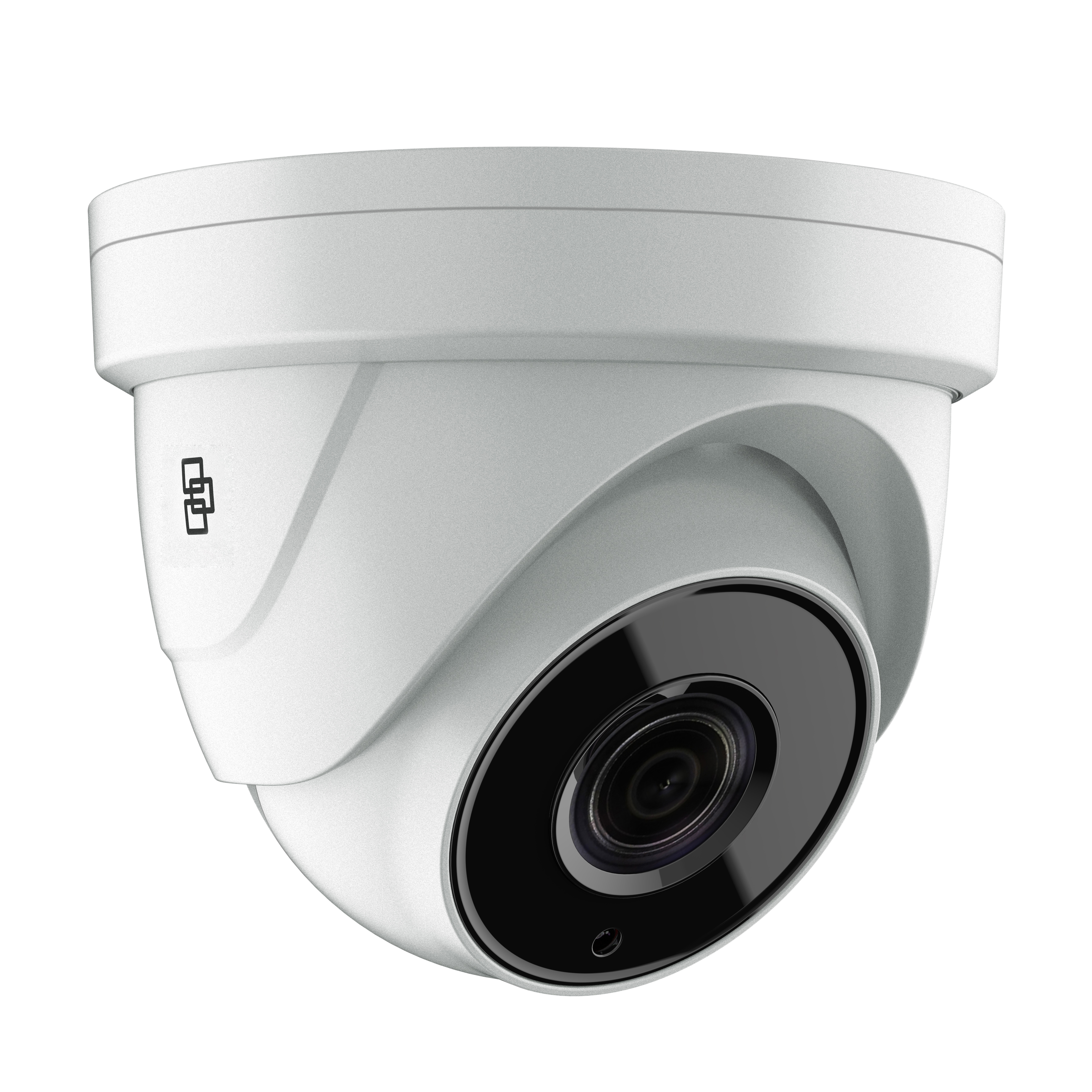

The TruVision TVT-2402 HD-TVI Turret Cameras by Interlogix deliver cost effective surveillance with high resolution HD-TVI technology and up to 3MPX image quality over existing coaxial cable. The 3MPX HD-TVI cameras must be used with a 3MPX (or higher) resolution HD-TVI DVR and will not function in TVI mode on a lesser TVI Recorder.

The TruVision TVT-2402 HD-TVI Turret Cameras also provide uniform illumination due to its IR technology. These cameras include an adapter plate for ease of installation with a variety of the TruVision mounts and accessories making them ideal for new or existing projects.

  • 3MPX resolution
  • HD-TVI technology for transmitting HD quality video over existing coax cable
  • True day/night functionality and infrared illuminators with Smart IR function for capturing images in various lighting scenarios
  • IR range of up to 40 m
  • IP66 environmental rating
  • Wide Dynamic Range (WDR), 120 dB
  • 2.8 to 12mm motorized lens
  • IP66 environmental rating
  • 12 VDC
  • The 3MPX HD-TVI output is only compatible with 3MPX capable HD-TVI recorders such as the TVR 15HD

Ordering

TVT-2402  TruVision HD-TVI Analog Turret Camera, PAL 3MPX, 2.8 to 12mm  Motorized Lens, True D/N, WDR, 40m IR, Dual Output 960H Monitor or HD-TVI, Coax & button OSD control, 12VDC, IP66, PAL

Truvision TVT-2402 datasheet

DOWNLOAD
