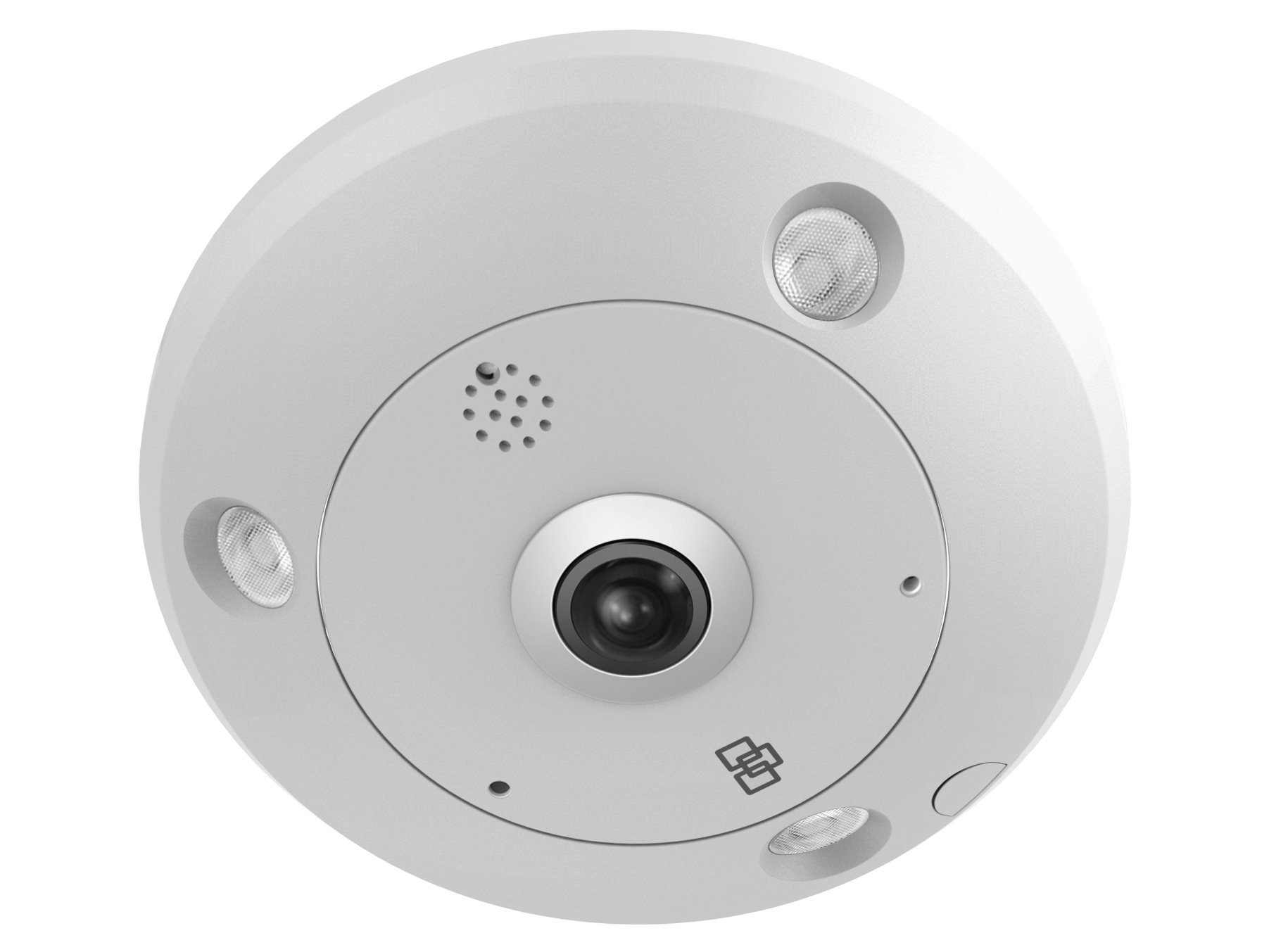

TruVision TVF-1103

TruVision 360 Degree IP Dome, 6.0 MPX, PAL, DWDR, 1.27mm fisheye lens, true D/N, 10m IR, 2 way audio (built-in mic & speaker), SD/SHDC slot, POE (803.af) /12VDC.

  • 6MPx 1/1.8″ Progressive Scan CMOS
  • Up to 3072 x 2048 real-time streaming
  • 360° view angle
  • Multiple viewing modes
  • Multiple ePTZ streams with preset and patrol functions
SKU: TVF-1103 Categories: , Tags: , ,

Description

The TruVision TVF-1103 is ideally suited for a variety of applications including retail, commercial, law enforcement and education environments. The TruVision 360º network dome camera provides high-quality image capture, that delivers a complete view of indoor or outdoor areas for exceptional security coverage.

Supporting 3MPx sensors, these cameras are PoE 802.3af powered making installation as easy as running a Category 5e cable to the camera location. Particularly effective in areas where a wide area needs to be covered, such as intersecting corridors, parking garages, counters and warehouses. The TruVision TVF-1103 360º camera can also be used in a wall-mount configuration to capture panoramic scenes. With an IR range of up to 10m, they can also be used in low-light environments and for 24/7 exterior surveillance.

Extra mounting accessories are available for pendant mount and wall mount installation.

The cameras can be used with our TruVision NVRs and Prism.

  • 6MPx 1/1.8″ Progressive Scan CMOS
  • Up to 3072 x 2048 real-time streaming
  • 360° view angle
  • Multiple viewing modes
  • Multiple ePTZ streams with preset and patrol functions
  • Up to 10m IR range
  • 2-way audio, built-in mic and speaker
  • Built-in SD/SDHC card slot
  • Ceiling, wall and desk mount options
  • Indoor version
  • Operating temperature range -30° to 60°C

Ordering

TVF-1103 Truvision 360/180 Degree IP Dome, 6.0MP, DWDR, 1.27MM Fisheye Lens, True D/N,10M IR, 2 Way Audio (Built-in MIC & Speaker), SD/SHDC SLOT, PoE (803.AF) /12VDC, PAL

TruVision TVF-1103 Fisheye Camera Datasheet
