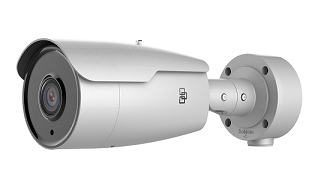

TruVision TVB-5413

HomeTruVisionVideo SurveillanceTruVision TVB-5413
TruVision TVB-5412

TruVision TVB-5413

TruVision ANPR camera, H.264, 1080p, 8-32mm, Super Low Light, WDR, true D/N, 80m IR, Audio, Alarm, BNC, micro SD/SHDC slot, Intelligence, PoE+ (802.3-at) /12VDC, IP66

  • Automatic Number Plate Recognition (ANPR)
  • Wiegand interface for integration with access control systems
  • Motorized Lens 8 to 32mm
  • Up to 80 m IR illumination
  • Super Low Light: Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux IR on
SKU: TVB-5413 Categories: , Tags: , , ,

Description

The TruVision TVB-5413 Automatic Number Plate Recognition (ANPR) cameras feature embedded Optical Character Recognition (OCR) to identify vehicle license plate information in real-time. Captured license plates can trigger events that can be used to store video and snapshots or sent events over the network. These events contain information like license plate characters, date & timestamp, lane number, direction, etc.

The onboard Wiegand interface allows the camera to be connected to any access control system with Wiegand reader interface. Every license plate stored in the camera database can have a corresponding badge ID that is sent via the camera Wiegand output to the access control system whenever the license plate is read. In standalone operation where the TruVision TVB-5413 camera is used to grant access to vehicles, the license plates stored in the camera database can be configured as white or black listed. Actions like activating the camera output to open a gate for white listed vehicles can be configured in the camera.

Black listed or non-listed vehicles can also trigger additional actions or events. Without matching vehicle license plates against a database, the camera is also able store any captured license plate on local storage, NAS or FTP server. When the camera is connected to an access control system, the access control system can grant or deny access to the vehicle based on the badge ID that is sent by the camera whenever the license plate is captured. Access Control system parameters like access levels, time schedules or other logic can be used to grant access to specific vehicles according pre-defined time schedules. The video streams from the camera can also be recorded on any TruVision network recorder or any VMS supporting recent TruVision IP cameras.

  • Maximum Real Time Resolution: 1920 x 1080 @ 50 fps
  • Motorized IR Cut Filter
  • ONVIF Profile G and S conformant
  • H.264 compression with triple-streaming functionality
  • Edge recording up to 128GB with optional SDHC card
  • Up to 120 dB Wide Dynamic Range

Ordering

TVB-5412 TruVision ANPR camera, H.264, 1080p, 2.8-12mm, Super Low Light, WDR, true D/N, 50m IR, Audio, Alarm, BNC, micro SD/SHDC slot, Intelligence, PoE+ (802.3-at) /12VDC, IP66
TVB-5413 TruVision ANPR camera, H.264, 1080p, 8-32mm, Super Low Light, WDR, true D/N, 80m IR, Audio, Alarm, BNC, micro SD/SHDC slot, Intelligence, PoE+ (802.3-at) /12VDC, IP66

TruVision TVB-5413 Bullet Camera Datasheet

DOWNLOAD
