Teletek SF 50

Teletek SF 50

  • Operating Voltage Range: 16-29VDC
  • Maximal consumption: 75mA @ 24VDC
  • Maximal sound volume: 102dB @ 1m
  • Frequency range: 2.7-4kHz
  • Frequency of the strobe flashing: 2Hz/0.6W
  • Type of tone: monotone
  • Color LEDs: red
  • Material/ColorABS: red
  • Dimensions: 94x45x69mm
SKU: SF 50 Categories: , Tags: ,

Description

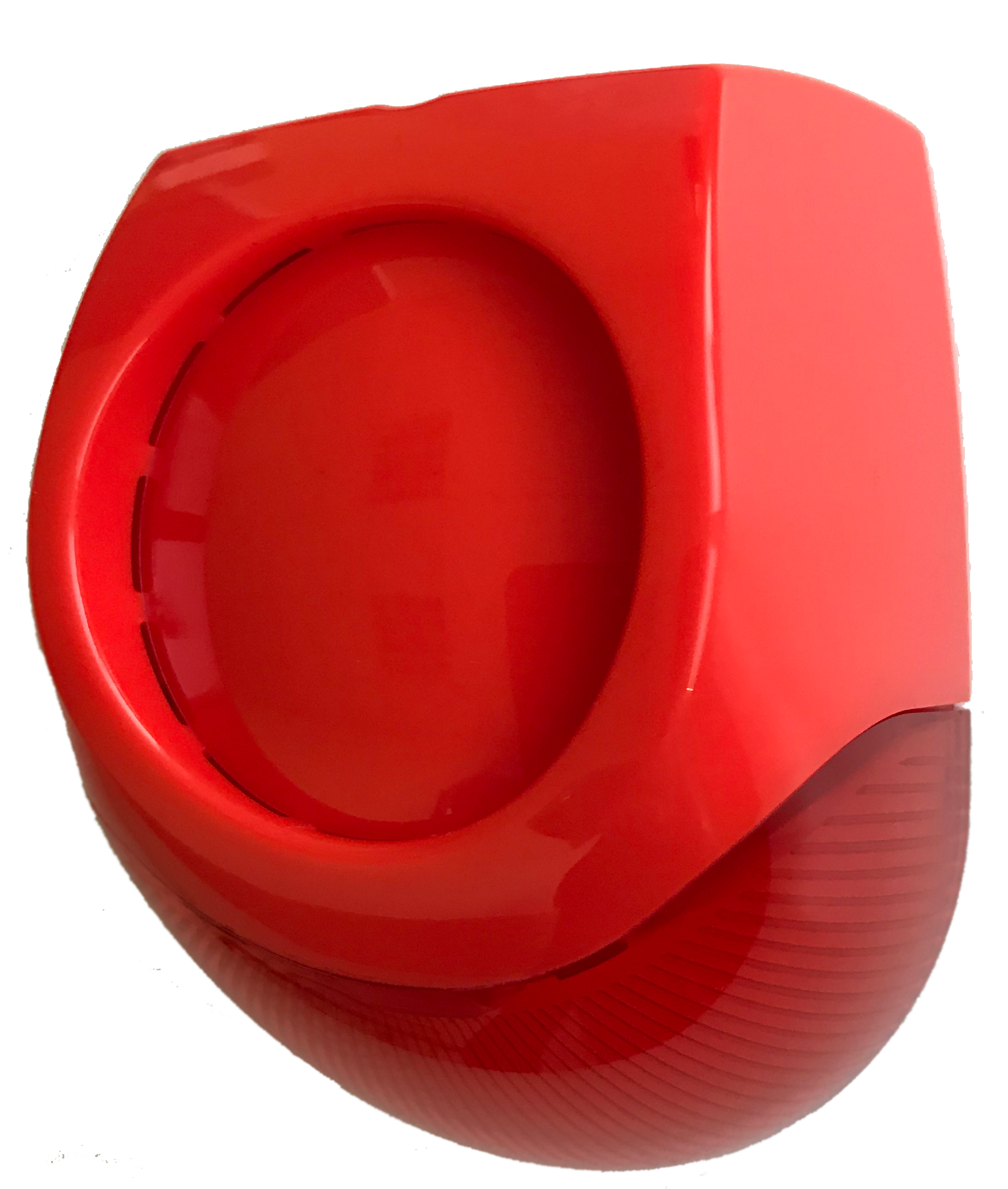

Teletek SF 50 is а conventional fire alarm sounder with strobe and has one input for connection to a conventional fire alarm panel. Teletek SF 50 is designed for indoor use only. The sounder has compact size and it is suitable for installation on plain surfaces. The mounting is easy without need of disassembling any parts of the sounder’s body. The fixing is done with a single screw.

Ordering

SF 50 Teletek SF 50 Indoor fire alarm siren with strobe; Certified to EN54-3

Teletek SF 50 datasheet

DOWNLOAD
