SensoIRIS BSOU

SensoIRIS BSOU

  • Two sound levels – LOW (82-92dB)* and HIGH (100-103dB)*
  • 32 sound types selectable from the panel
  • Loop powered
  • Compatible with SensoIRIS addressable detectors series: T110, T110 IS, S130, S130 IS, M140 and M140 IS
  • EN54-3 certified
  • Version with built-in isolator available
SKU: SensoIRIS BSOU Categories: , Tags: ,

Description

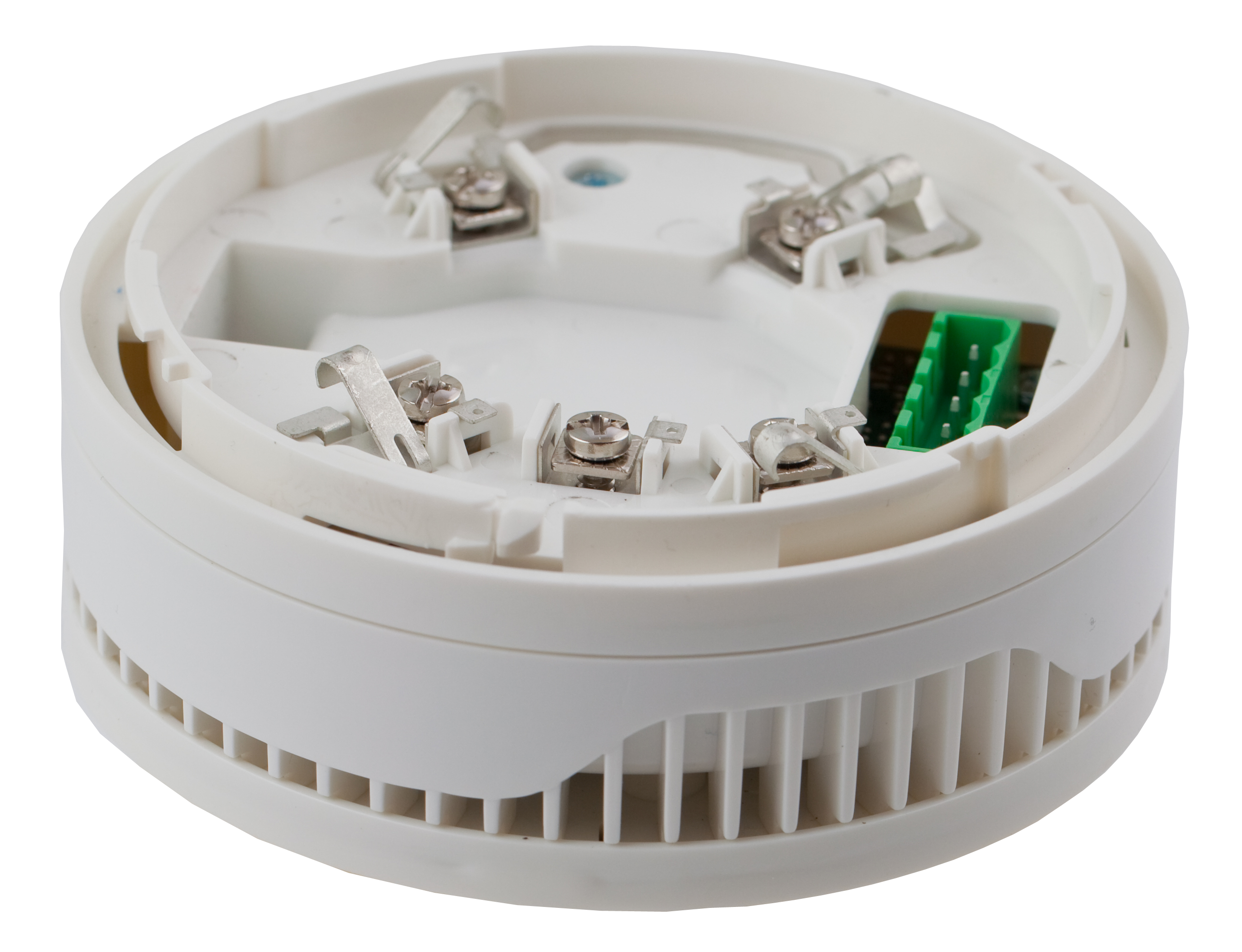

SensoIRIS BSOU is аn addressable fire base with built-in sounder in its body. SensoIRIS BSOU is designed for installing in addressable fire alarm systems supporting TTE communication protocol. The device is powered on from the panel and can be controlled via the communication protocol. The addressable fire base supports 32 different tone types at two sound levels. The tone type and sound level are programmed from the control panel.

The device is designed for easy installation and consist from two parts: mounting plane basis and sounder with factory mounted fire base.

Fully comply and certificated to EN54, part 3.

Ordering

SensoIRIS BSOU Teletek SensoIRIS BSOU  BASE SOUNDER compatible with SensoIRIS Detectors

SensoIRIS BSOU datasheet
