Repeater TFT IRIS/SIMPO

HomeAddressable Fire AlarmTeletekRepeater TFT IRIS/SIMPO
Repeater TFT IRIS/SIMPO

Repeater TFT IRIS/SIMPO

  • Touch screen – 7 inch color display
  • Build in RS485 Network module
  • Build in LAN module
  • Up to 64 nodes in network – RS485
  • Up to 1km distance between the panels
  • Reset/Evacuate/Silence Sounders and Buzzer of all network panels
  • IRIS and SIMPO compatible
  • Slim design
  • Multi-language support
  • 10 000 events log
  • Designed according to EN54 2/4
  • Changeable logo picture
SKU: Repeater TFT IRIS/SIMPO Categories: , Tags: ,

Description

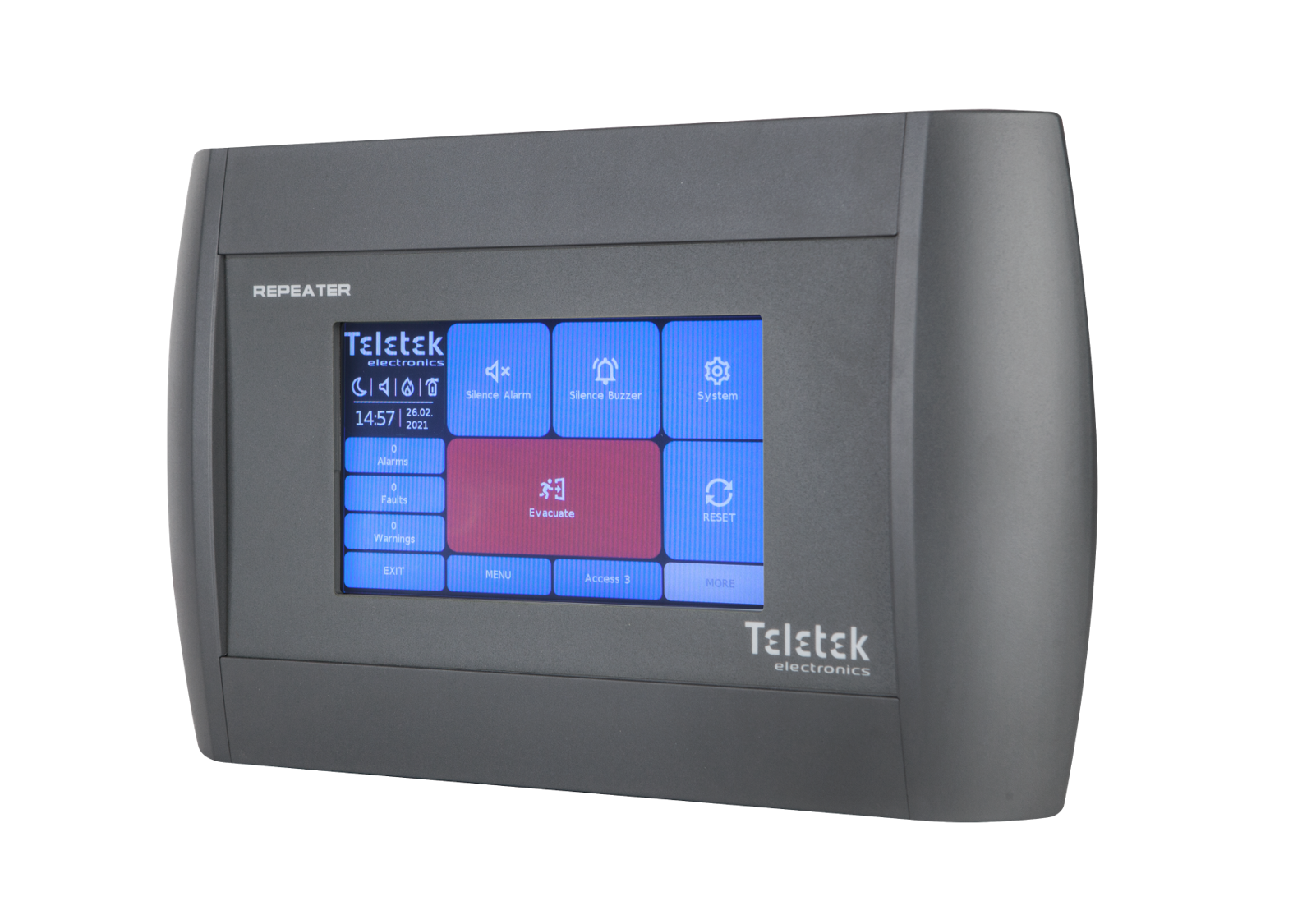

The Repeater TFT IRIS/SIMPO is a device that duplicates the information provided by the SIMPO and IRIS addressable fire panels in order to help you get information on the current situation in the premises without having to be physically close to the main panel. The connection between the Repeater TFT IRIS/SIMPO panel and the main panels has been obtained by using a redundant network module based on the RS485 interface or a standard LAN network.

The monitoring information is displayed on the 7 inch touch screen LCD display. There is also LED indication available. The Repeater panel has a built-in real time clock feature and a micro USB for programming and firmware update.

Ordering

Repeater TFT IRIS/SIMPO Teletek Repeater TFT IRIS/SIMPO  Repeater fire alarm panel with colorful TFT display, supports IRIS series and SIMPO panels; up to 64 panels and repeaters in a network; slim design, Grey plastic housing

Repeater TFT IRIS/SIMPO datasheet
