Redundant Network IRIS/SIMPO

Redundant Network IRIS/SIMPO

  • Maximum fire alarm panels in network – 32
  • Communication – RS485
  • Secure a Back up connection line of the communication between the panels.
  • Interface connection between the panel and module (plug in in the panel)
  • Maximum distance between two Redundant network modules – 1000 m.
  • Programming from the panel
  • Power supply from the panel
  • Cable connection:
  • Twisted pair
  • Length – max. 1000m (between two modules)
  • Cross Section – 0.5 – 2.5mm²
SKU: Redundant Network IRIS/SIMPO Categories: , Tag:

Description

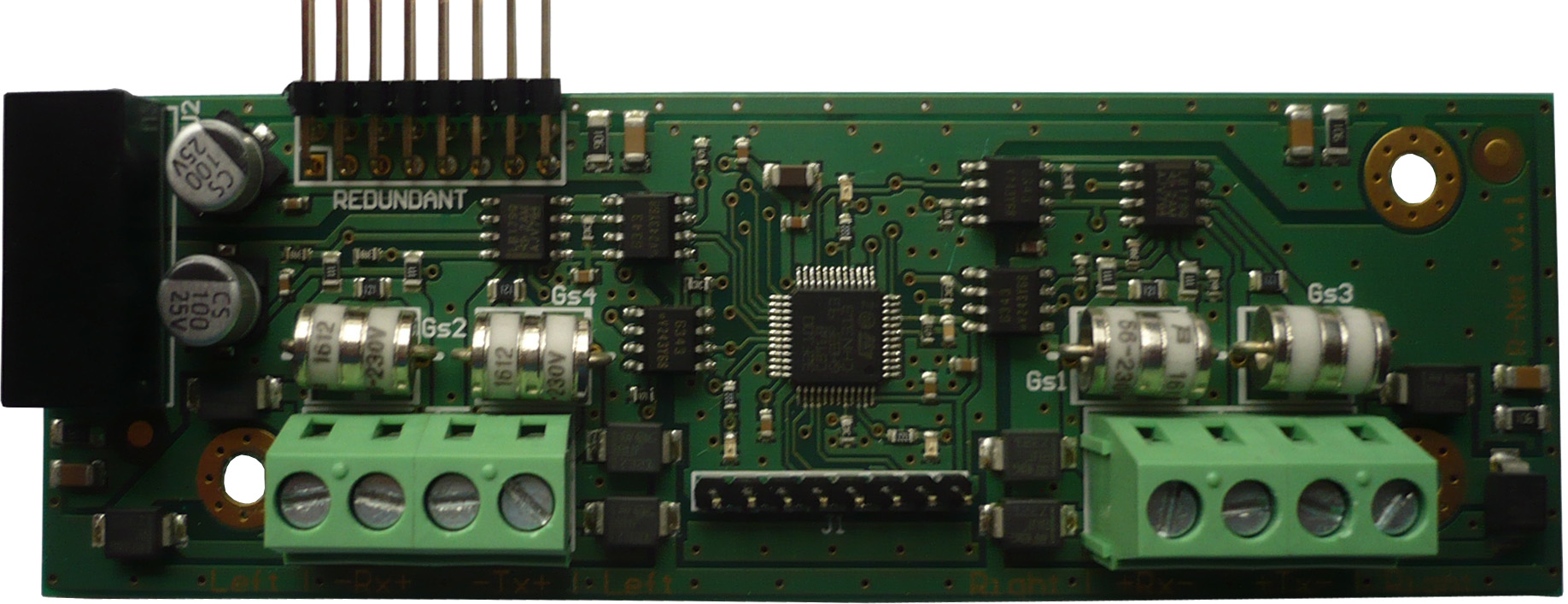

Redundant Network IRIS/SIMPO is a module used for building of an Ethernet network between Teletek Electronics addressable panels IRIS, IRIS PRO and SIMPO. The modules allows to connect up to 32 fire alarm panels in network and secures a back up connection line of the communication between the panels. The communication is over RS 485 protocol. The maximum distance between two Redundant network modules is 1000 m.

Operation with Redundant Network IRIS/SIMPO is supported for the following revisions of the panel:

For IRIS fire alarm panel:

– LCD PCB Hardware revision: 2.4 and higher

– MAIN Board Firmware revision: 4.2 and higher

For SIMPO fire alarm panel:

– MAIN Board Firmware revision: 2.8 and higher

Ordering

Redundant Network IRIS/SIMPO Teletek Redundant Network IRIS/SIMPO Module redundant network; supports panels IRIS and SIMPO

Redundant Network IRIS/SIMPO datasheet
