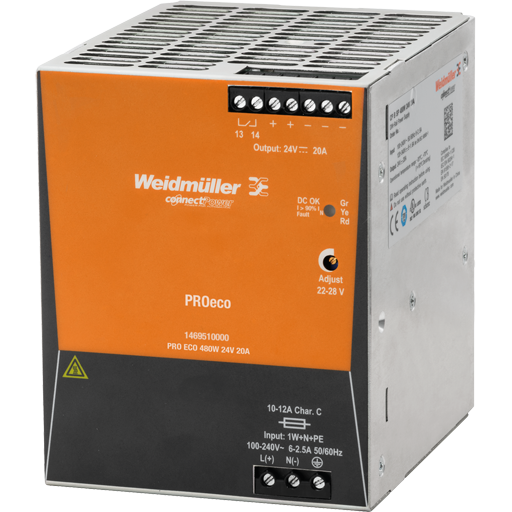

Power supply DIN PS24 480 W

HomeAxis CommunicationsAxis System DevicesVideo SurveillancePower supply DIN PS24 480 W
Power supply DIN PS24 480 W

Power supply DIN PS24 480 W

For use with Axis positioning units

  • Input AC: 100-240 V AC, 50-60 Hz, 5,2 A
  • Input DC: 80-370 V DC, 4,65 A
  • Output: 24 V DC, 480 W
  • Operating temperature: -25–70 °C (-13–158 °F)
SKU: 01677-001 Categories: , , Tags: , ,

Description

Power supply DIN PS24 480 W is a reliable power supply with high power, supporting both AC and DC input. It has a compact design and high efficiency, making it cost-effective and easy to maintain.

INPUT:

AC current consumption 2,37 A @ 230 V AC / 5,2 A @ 110 V AC
AC input voltage range 85-264 V AC (Derating @ 100 V AC)
DC current consumption 1,55 A @ 370 V DC / 4,65 A @ 120 V DC
DC input voltage range 80-370 V DC (Derating @ 120 V DC)
Frequency range AC 47-63 Hz
Input frequency 47-63 Hz
Rated input voltage 100-240 V AC (wide-range input)



OUTPUT:

Output power 480 W
Output voltage 24 V
Output voltage 22-28 V (adjustable via potentiometer)
Rated output voltage 24 V DC ± 1 %

ordering

01677-001 POWER SUPPLY DIN PS24 480W, Power supply for AXIS Q86, Q87 & T99A product lines. 480W 24V 20A for DIN rail mounting.
Download File Not available
