Description

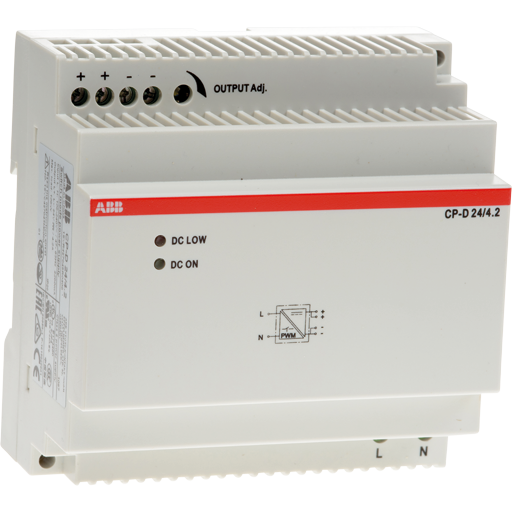

The UL certified Power Supply DIN CP-D 24/4.2 100 W provides 24 V DC and is ideal for installation in AXIS T98-VE cabinets. With a wide operating temperature, from -40 °C to 70 °C (-40 °F to 158 °F), it provides power to network cameras, media converters etc. even in harsh environments.
| Rated Input Voltage: | 100 – 240 V AC |
| Input: | Voltage: 90 – 264 V AC / 120 – 375 V DC |
| Output: | Voltage: 24 V DC (adjustable from 24 to 28 V DC) |
| Current: 4.2A | |
| Power: 100 W | |
| Operating conditions: | -40 to +70 °C (-40 °F to 158 °F) |
| Storage conditions: | -40 to +85 °C (-40 °F to 185 °F) |
| Approvals: | CE, cULus, cURus, CCC, RCM, EAC |
| Standards: | EMC: IEC/EN 55024, IEC/EN 55022 Class B |
| Safety: UL 508, UL 60950-1, CAN/CSA C22.2 No.107.1, CAN/CSA C22.2 | |
| No.60950 | |
| Environment: RoHS, Directive 2011/65/EU | |
| Dimensions: | 89.9 x 91 x 57.5 mm (3.5 x 3.5 x 2.2 in) |
| Weight: | 0.386 kg (13.6157oz) |
| Mounting on DIN rail: | TH35-15/ TH35-7.5 acc. to IEC 60715 |
