Description

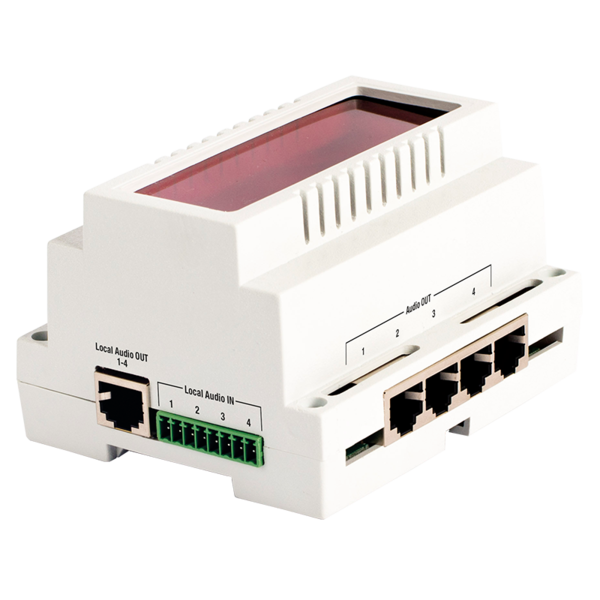

The PAVA EST-ISLE Audio/RS485 Interface is both a communication module enabling integration with external systems via RS485 protocol and an audio signal splitter.
- Address settings – Number of addresses in the range of 0-F (16 addresses).
- Local AUDIO IN – 4 input channels on the 8 pin connector. For easier and faster connection of audio sources, Phoenix-type connectors can be used. LOCAL AUDIO IN jack (8 pin connector Phoenix) is bridged with LOCAL AUDIO OUT (RJ-45). Output amplifiers – RJ-45 connector for the 4-channel amplifier.
- Local AUDIO OUT – RJ-45 connector for input signals to the system. PSM – RJ-45 connector for the link with power manager.
