Teletek MAG8P

Teletek MAG8P

  • 8 fully monitored fire zones with up to 32 fire alarm detectors and unlimited number of call points per zone
  • 2 monitored siren outputs – 24V/ 0.5A each
  • 1 “fire” and 1 “fault” relay output
  • Double knock
  • Siren delay
  • Supports relay expander and LOG module
  • Active EOL allowing continuous monitoring of inputs
  • “One man” zone testing
  • Multilanguage support
  • LED indication
  • Security key
  • Plastic box
SKU: MAG8P Categories: , Tags: , ,

Description

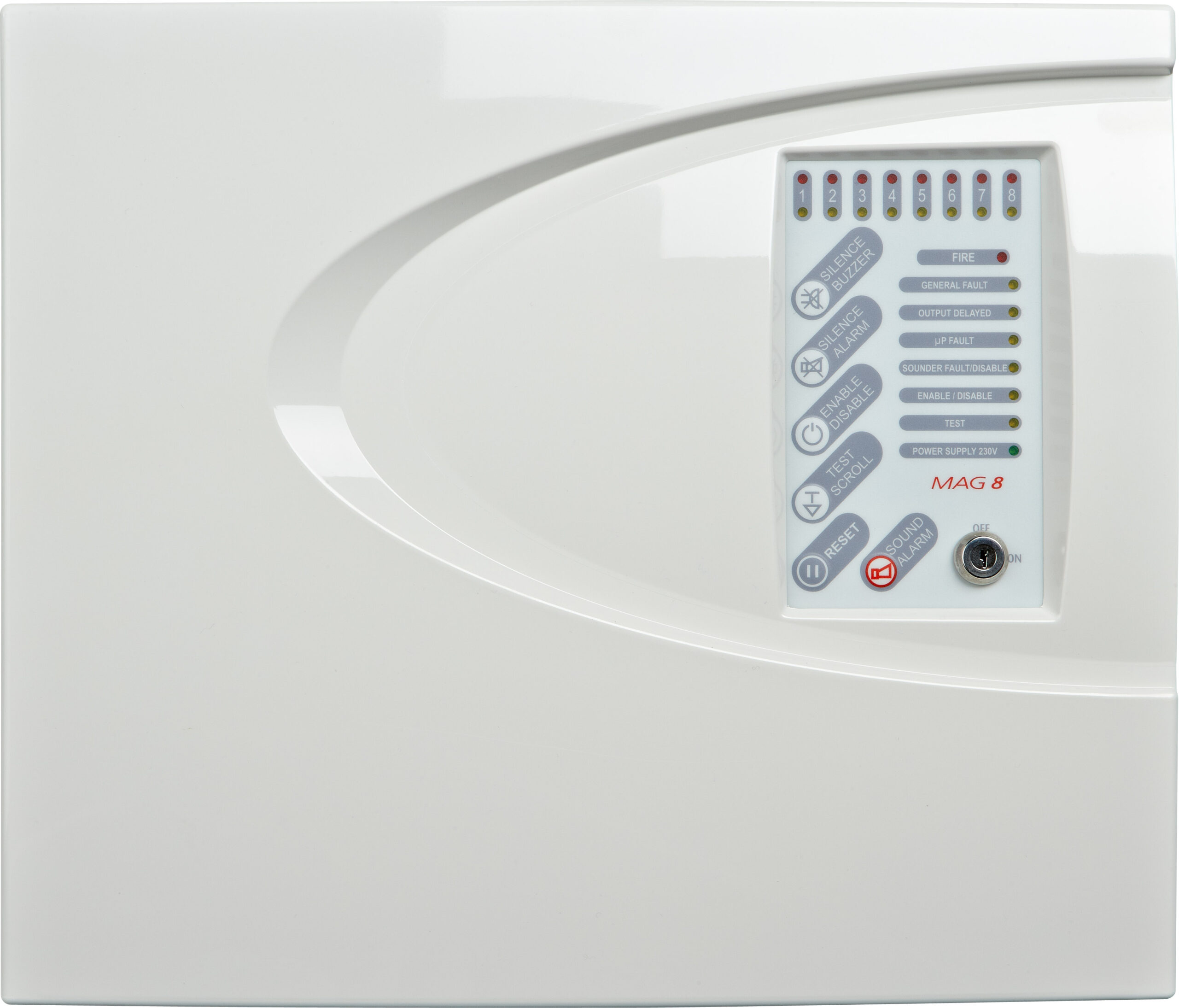

Teletek MAG8P is a conventional fire alarm panel certificated to EN54-2/4, providing 8 fixed zones. Up to 20 (32 SensoMAG Series) fire detectors can be connected to every fire zone. Unlimited number of call points can be connected to every of the fire zones.

Teletek MAG8P is situated in a plastic box. The panel is easy for installation and maintenance and provides user-friendly daily operation.

The panel is suitable for residential, small and middle office applications with 8 protected areas up to 3000m².

The panel is available in different language versions for the front panel.

Ordering

MAG 8P Teletek MAG 8P Con fire alarm control panel; plastic box

MAG8P datasheet

DOWNLOAD
