Description

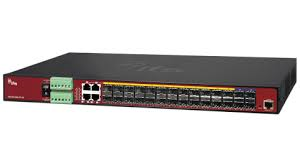

This IFS NS4750-24S-4T-4X-V2 enterprise-class network switch is engineered to meet the needs for a distributed fiber optic network system. When used with IFS™ SFP Media Convertors it provides a flexible and economical distributed IP CCTV solution.
Management In TruVision Navigator
The IFS NS4750-24S-4T-4X-V2 simplifies management of your IP video system by providing integration into TruVision Navigator 8.0 and above. The NS4750-24S-4T-4X-V2 can provide information to TruVision Navigator such as ONVIF labels of cameras, bandwidth usage per port and POE power control making installation and management IP Video systems simpler and effortless.
Static Routing
The NS4750-24S-4T-4X-V2 supports static routing tables allowing for complex system architectures. Traffic can be routed across different domains or between different VPN. This allows flexible network design and greater control of network traffic, essential for modern IP CCTV systems.
Flexible 10Gbps Ethernet Trunking Solution
10G Ethernet is a big leap in the evolution of Ethernet. Each of the SFP+ slot in the NS4750-24S-4T-4X-V2 supports Dual-Speed, 10GBase-SR/LR or 1000Base-SX/LX. The administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. With its 4-port, 10G Ethernet link capability, the NS4750-24S-4T-4XV2 provides both broad bandwidth and powerful processing capacity.
- Powerful PoE+ Support
- Built-in Monitoring, Diagnostics and Trouble-Shooting Tools
- Static Routing
- 10Gig SFP+ Switch Trunking
- Stacking Capability (NS4802-24P-4S-2X only)
- Complies w/the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae Standards
- IGMP Snooping v1, v2 and v3 Fast Leave
- IEEE 802.1Q Tag-Based VLAN
- Layer 3 IP Routing: Supports Maximum 128 Static Routes and Route Summarization
- STP, IEEE 802.1D
- 4 Priority Queues on All Switch Ports
- IEEE 802.3ad LACP
- IEEE 802.1x Port-based Authentication
- Local Console or Remote Switch Management via Web Browser, Telnet CLI, SNMP v1, v2c, v3
- 3-Year Limited Warranty
- LCD touchscreen for Basic Switch Configuration (NS-4702-24P-4X only)
