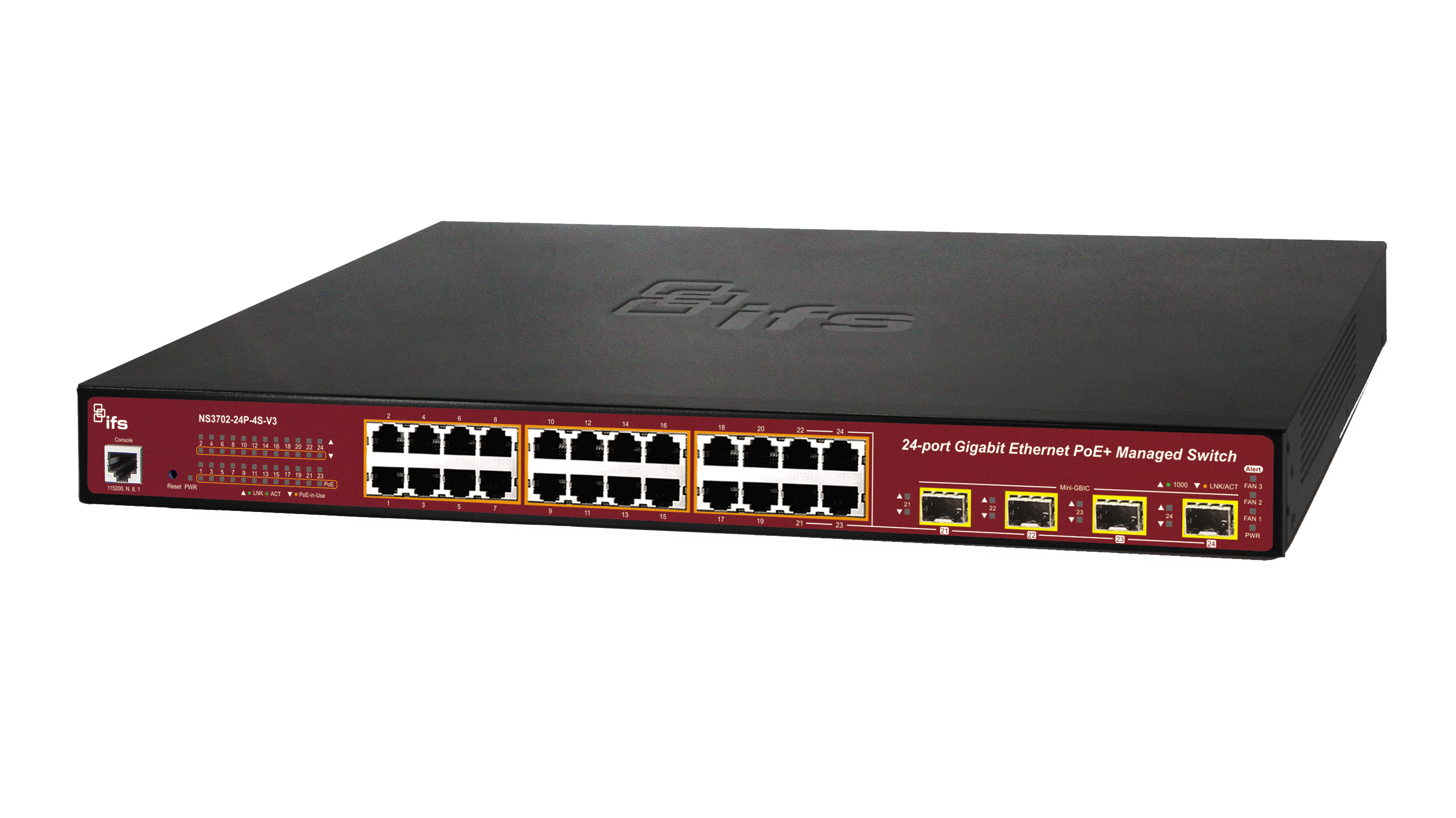

IFS NS3702-24P-4S-V3 Managed Ethernet Switch

Enterprise-class, 24-port, Gigabit backbone network switch with PoE+, static routing

  • 24-ports Gigabit Ethernet RJ-45 with PoE+
  • Supported in TruVision Navigator 8 – Discover devices, monitor port utilization, control PoE power
  • 4 SFP slots shared with Ports 21 to 24 – compatible with S2x and S3x SFP’s
  • Support for Static Routing
  • Up to 48 Gbps non-blocking switch fabric
SKU: NS3702-24P-4S-V3 Categories: , ,

Description

This IFS NS3702-24P-4S-V3 enterprise-class network switch is engineered to meet a variety of high-performance applications such as PoE distribution, optical network architectures, and high-density performance through reliable technology and advance Layer 2+ networking features.

Management In TruVision Navigator

The IFS NS3702-24P-4S-V3 simplifies management of your IP video system by providing integration into TruVision Navigator 8.0 and above. The NS3702-24P-4S-V3 can provide information to TruVision Navigator such as ONVIF labels of cameras, bandwidth usage per port and POE power control making installation and management IP Video systems simpler and effortless.

Full Power Isolated Per Port PoE+

The NS3702-24P-4S-V3 features IEEE 802.3at Power over Ethernet (PoE+) providing optimized deployment and power management of PoE edge devices such as IP Surveillance cameras. access control panels and wireless access points (WAP). In addition, PoE port circuit protection isolates and prevents power interference between ports.

Static Routing

The NS3702-24P-4S-V3 supports static routing tables allowing for complex system architectures. Traffic can be routed across different domains or between different VPN. This allows flexible network design and greater control of network traffic, essential for modern IP CCTV systems.

  • 10 Kbytes Jumbo Frame Size
  • 8K MAC address table
  • Full Multicast Support for IP Video – up to 256 multicast groups
  • VLAN Support – up to 256 VLANs groups
  • Quality of Service (QoS)
  • Power over Ethernet
  • Complies with IEEE 802.3at Standard for PoE
  • 380 W Power Budget
  • Auto-detects PoE powered devices (PD)
  • Advanced Security
  • MAC Filtering and Source IP/MAC address port-binding

ordering

NS3702-24P-4S-V3 IFS 24-Port 10/100/1000Base-T  IEEE802.3at Copper Ports with 4 shared SFP Slots Managed Gigabit Ethernet Switch (24x 15,4W/ 12 x 30,8 W / 380W PoE Budget) and Static Routing (0~50?)

IFS NS3702-24P-4S-V3 datasheet

DOWNLOAD
