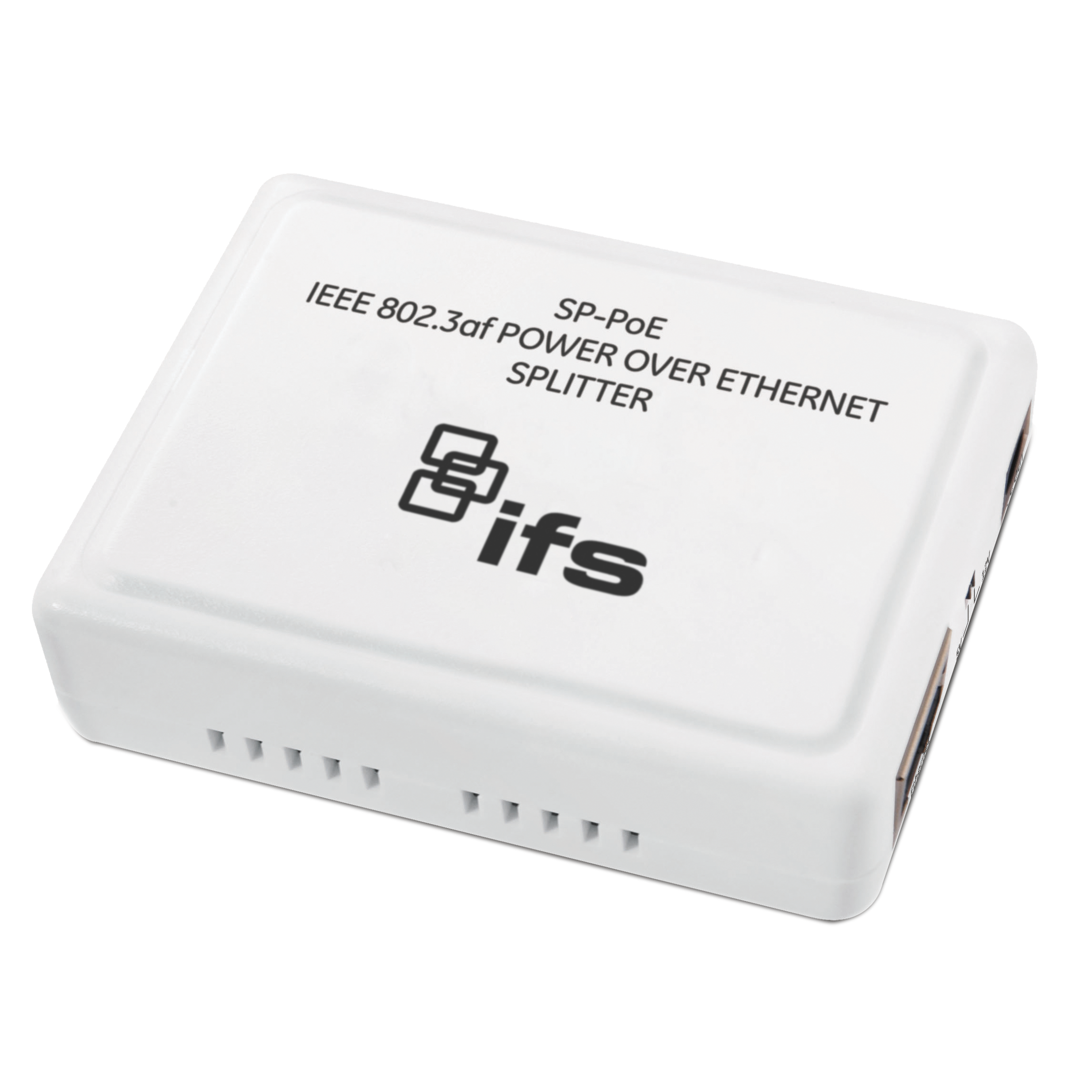

IFS SP-POE PoE Splitter

IFS SP-POE PoE Splitter IEEE802.3af

  • Complies with IEEE 802.3af Power over Ethernet, IEEE 802.3 10-Base-T and IEEE 802.3u 100Base-TX
  • Provides DC 48V power over RJ-45 Ethernet cable to device with Ethernet port
  • LED indicators for power input
  • Distance up to 100 meters
SKU: SP-POE Categories: , Tags: ,

Description

UTC Fire & Security SP-POE is a Power over Ethernet IEEE 802.3af Splitter that splits the 48VDC power input over an Ethernet cable into separate 5V and 12V DC power outputs.  The SP-POE works with IEEE 802.3af power source equipment (PSE). This frees device deployment from restrictions due to power outlet locations and eliminate the costs for additional AC wiring and reduces the installation time. When the PSE inserts DC Voltage into the CAT 5 cable, it allows the cable between the PSE and SP-POE to transfer data and power simultaneously.  The maximum distance between the PSE and SP-POE is 100m. The SP-POE also reduces costs and facilitates networking planning while delivering higher reliability.

  • Complies with IEEE 802.3af Power over Ethernet, IEEE 802.3 10-Base-T and IEEE 802.3u 100Base-TX
  • Provides DC 48V power over RJ-45 Ethernet cable to device with Ethernet port
  • LED indicators for power input
  • Distance up to 100 meters
  • Auto-detect of PoE IEEE 802.3af equipment protects devices from being damaged by incorrect installation
  • Works with EIA568, category 5, 4-pair cables for 10Base-T or 100Base-TX
  • EMI standards comply with FCC, CE class B
  • Convenient plug-and-play installation saves time and reduces installation costs
  • 2 selectable of DC voltage output- 5V, 12V for SP-PoE

Ordering

SP-POE IFS 1-Port 10/100Base-Tx IEEE802.3af Copper to a 1-Port 10/100Base-Tx Copper Splitter (Splits Data with 5V or 12V DC) (0~50℃) – Stand-alone or Wall Mount

IFS SP-POE Datasheet

DOWNLOAD
