Overview

The ECKOSHIELD HFC227ea is a pre-engineered clean agent fire suppression system designed for rapid and effective fire extinguishing in sensitive environments where water-based suppression is not suitable. The system uses HFC-227 clean agent technology, offering fast discharge performance and minimal impact on protected assets.

This system is SABS (South African Bureau of Standards) approved, ensuring compliance with local regulatory requirements and installation standards in South Africa.

Clean Agent Fire Protection

The ECKOSHIELD HFC227ea system uses HFC-227 clean fire suppression agent, which is designed to extinguish fires quickly by interrupting the chemical reaction of combustion without leaving residue or causing damage to electronic or sensitive equipment.

It is widely recognised as an effective Halon 1301 replacement, offering strong fire suppression performance while maintaining compatibility with occupied spaces when used within approved design limits.

Pre-Engineered System Benefits

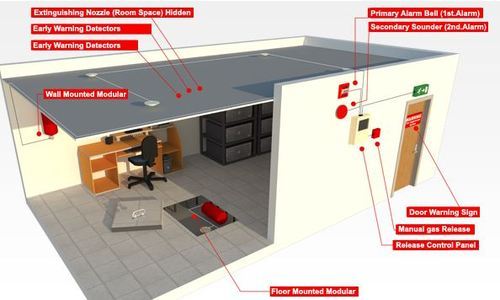

As a pre-engineered system, ECKOSHIELD-227® does not require extensive pipework within the protected area. Instead, the suppression agent is discharged directly through specially designed nozzles mounted on the cylinder assembly.

This design reduces installation complexity, minimises disruption to existing infrastructure, and avoids interference with mechanical and electrical services already installed within the space.

Environmental & Safety Characteristics

HFC-227 is characterised by zero ozone depletion potential (ODP), meaning it does not contribute to ozone layer damage. It is widely used globally as an environmentally acceptable clean agent for fire protection applications.

The agent is recognised under NFPA 2001 standards for clean agent fire suppression systems and is supported by established service and maintenance networks across multiple regions.

Manufacturing & Compliance

ECKOSHIELD-227® cylinders are manufactured in South Africa and are approved to SANS 347:2012, ensuring compliance with local pressure equipment and safety regulations.

Typical Applications

The system is ideal for protecting high-value and mission-critical environments, including:

• Data processing centres
• IT systems and software infrastructure
• Telecommunications equipment rooms
• Libraries and archival collections
• Museums and artefact storage
• Art storage facilities
• Original document storage archives
• Bank vault systems
• Generator and turbine enclosures

Key Features

• SABS approved pre-engineered fire suppression system
• Uses HFC-227 clean agent for fast fire suppression
• Zero ozone depletion potential (ODP) environmentally friendly agent
• No pipework required inside protected areas
• Cylinder-mounted nozzle discharge design
• Minimal disruption during installation
• Suitable for occupied spaces within design limits
• Manufactured in South Africa and compliant with SANS 347:2012
• Recognised Halon 1301 replacement with global usage
• Ideal for protecting sensitive electronic and high-value assets
