Description

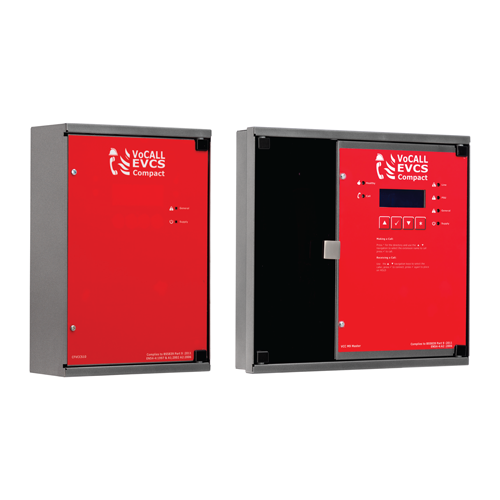

The VoCALL Compact 9 line master unit is ideal for small to medium-sized building installations which don’t require the complexity of a full network solution. The system comprises of the 9 line master unit controlling up to 9 outstations (type A, type B, emergency assist alarms) and with the use of the 10 line slave exchange unit, this system can be easily expanded to 19 lines. The self-contained enclosure houses a master handset, 9 Line Exchange, power supply and battery charger. It can be surface or semi-flush mounted as standard. The case is made from powder coated zintec, with a smoked perspex door covering the handset. 20mm cable knockouts are provided for all necessary cables as well as space for the backup 12V VRSLA battery.
- BS5839 Pt9:2011 compliant
- EN54 Pt4:A2 power supply and charger
- 4 navigation keys
- 6 status LEDs
- 4 line, 20 character LCD
- Full duplex system
- Simple menu programming
- Wall mount case
- By using the 10 Line Slave Exchange Unit the 9 line master unit can be expanded up to 19 lines
- In addition to Type A and Type B outstations, the Compact 9 Line Master Unit can also monitor Emergency Assist Alarms
- Only one 4 core fire rated cable* is required to connect the slave to the master
