Description

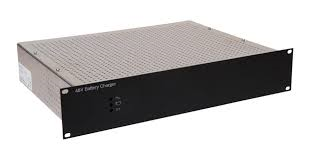

The Bosch PLN-24CH12 Battery Charger and PRS‑48CH12 Battery Chargers are designed for public address and emergency sound systems, to assure that the system batteries are always charged. Rack mountable, the unit charges lead‑acid batteries and simultaneously provides 24V or 48V for system components that use 24V or 48V exclusively. These Bosch PLN-24CH12 chargers are fully compliant and certified to EN 54‑4. The battery chargers are premium quality, intelligent, microprocessor controlled devices.
Performance
The maximum charger current is 12 A for charging the battery. The maximum battery capacity, according to EN 54‑4, is therefore 225 Ah, minimum size is 86 Ah. The maximum output of the back‑up power system is 150 A. The charger has an input voltage range of 195V to 264V, and a power factor corrector. The charger features automatic shutoff when the battery voltage is too low, to prevent battery damage. It also features over‑voltage protection, protection against wrong battery polarity and short‑circuit protection. The outputs are protected by fuses.
The power supply takes a resistance measurement of the battery including connections every 4 hours. The charger comes with a temperature sensor that is used to adjust the charging voltages. The charger has additional 24V or 48V (depending on model) auxiliary outputs, to supply power to equipment that needs 24V or 48V as primary power. The current capacity of these outputs is 5 A per output. The charger has relay outputs to signal a mains fault, battery fault and charger output voltage fault.
Controls and Indicators
- Mains status LED
- Battery status LED
- Output voltage fault LED
Interconnections
- 6 main outputs for the system, each with their own fuse
- 3 auxiliary outputs for peripherals, system components that always use 24/48 V with a lower current need
- Fault relays
- Battery connection
