Description

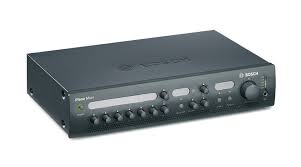

The Bosch PLE-10M2-EU Plena Mixer is a high performance, professional public address mixer with modern state of the art features. Combined with the PLE-1P120-EU or PLE-1P240-EU amplifiers, you can build an easy-to operate yet powerful and flexible public address system. All this without sacrificing features such as ducking, priority, and flexibility. The Bosch PLE-10M2-EU mixer fulfills a wide variety of public address requirements yet is surprisingly affordable.

Inputs

All Mic/line inputs can be switched between microphone level and line level sensitivity. The inputs are balanced and can also be used unbalanced. Phantom power can be switched on to provide power to condenser microphones. Input channels 1 and 2 can take priority over all other microphone and music inputs:

• Input 1 can be activated by contact closure on the PTT (push to talk) input, or the input can be switched automatically if a signal is fed to the input, i.e. if someone speaks into the microphone (VOX activation). A 2-tone chime can be configured to precede an announcement
• Input 2 also has a VOX possibility. When one or both inputs are configured for priority, the attenuation (reduction) of the cinch input can be set between ‑2 dB (little attenuation) and -∞ dB (mute). This provides a talk-over or voice-over function.

Input channels 1 and 2 also feature selectable speech filters to enhance the clarity of announcements.

Labels and Colored Pins

More unique features are available such as a detachable label where the user can write the names for inputs, music sources and zones. These labels can then be mounted on the front, protected by the clear window. Another useful feature is to indicate preferred settings on the front panel by inserting colored pins at the preset levels of all knobs. You can then instruct a user to set all the controls to the green pins to configure the system for their particular use. A second user can set all controls to the red pins for their configuration.
