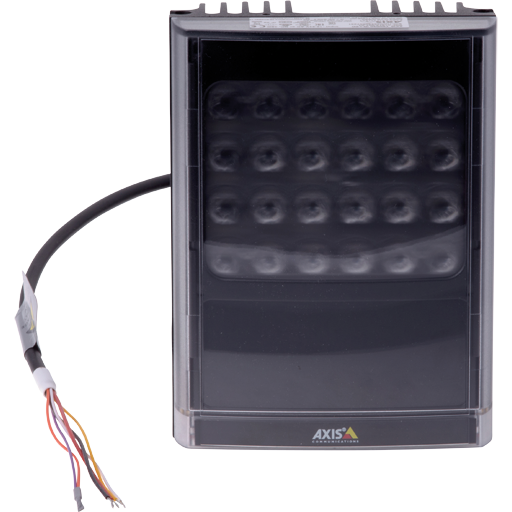

AXIS T90D30 IR-LED

High-performance infrared LED illuminator with ease of installation

  • High and efficient IR LED performance
  • AC/DC-powered illuminator
  • Flexible angle of infrared illumination
  • Various mounting options
SKU: 01212-001 Categories: , , Tags: ,

Description

Based on the latest LED technology, AXIS T90D30 IR-LED delivers more light where it is needed. It generates longer infrared LED illumination distance, minimize light wastage, and prevent overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be optimized to match your network camera’s field of view. AXIS T90D30 IR-LED Illuminator comes with a pre-mounted 10º diverging lens, and it includes diverging lenses of 35º, 60º and 80º beam angle. Moreover, an optional 120º diverging lens is available.

ordering

01212-001 AXIS T90D30 IR-LED, IR LED illuminator for Axis network cameras. Included interchangeable diverging lenses providing 10°, 35°, 60° & 80° beam angles. Beam distance ranges 70m to 350m (230ft to 1150 ft). Made of IK09 impact-resistant aluminium and polycarbonate. IP66 and NEMA 4X ratings. Operating temperature -50°C to 50°C (-58°F to 122°F). 12/24 V DC or AC input.

AXIS T90D30 IR-LED datasheet
