AXIS T90D25 PoE W-LED

AXIS T90D25 PoE W-LED

High-performance white LED illuminator with ease of installation

  • High and efficient White LED performance
  • PoE-powered illuminator
  • Flexible angle of white illumination
  • Various mounting options
SKU: 01216-001 Categories: , , Tags: ,

Description

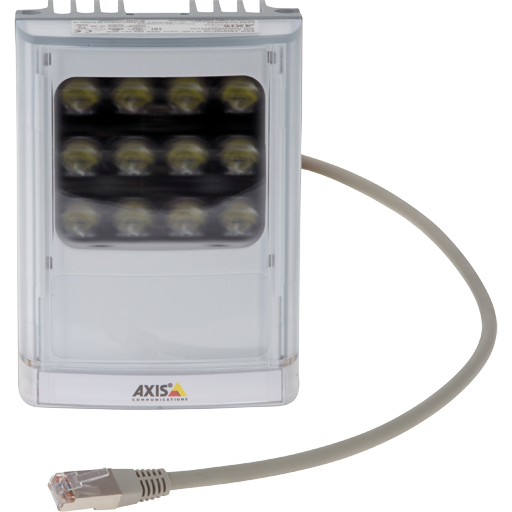

AXIS T90D25 PoE W-LED Illuminator offers a quick and reliable installation with a plug-and-play twisted pair cable. Create a flexible and cost-effective system by connecting the PoE illuminator with any PoE midspans or switches from Axis.

Based on the latest LED technology, AXIS T90D25 PoE W-LED delivers more light where it is needed. It generates longer white LED illumination distance, minimize light wastage, and prevent overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be optimized to match your network camera’s field of view. This AXIS Illuminator comes with a pre-mounted 10º diverging lens, and it includes diverging lenses of 35º, 60º and 80º beam angle. Moreover, an optional 120º diverging lens is available.

ordering

01216-001 AXIS T90D25 POE W-LED, PoE powered white LED illuminator for Axis network cameras. Included interchangeable diverging lenses providing 10°, 35°, 60° & 80° beam angles. Beam distance ranges 25m to 110m (80 ft to 360 ft). Made of IK09 impact resistant aluminium and polycarbonate. IP66 and NEMA 4X ratings. Operating temperature -50°C to 50°C (-58°F to 122°F). PoE+ IEEE 802.3at required.

AXIS T90D25 PoE W-LED datasheet

DOWNLOAD
