AXIS T90D20 PoE IR-LED

AXIS T90D20 PoE IR-LED

High-performance infrared LED illuminator with ease of installation

  • High and efficient IR LED performance
  • PoE-powered illuminator
  • Flexible angle of infrared illumination
  • Various mounting options
SKU: 01211-001 Categories: , , Tags: ,

Description

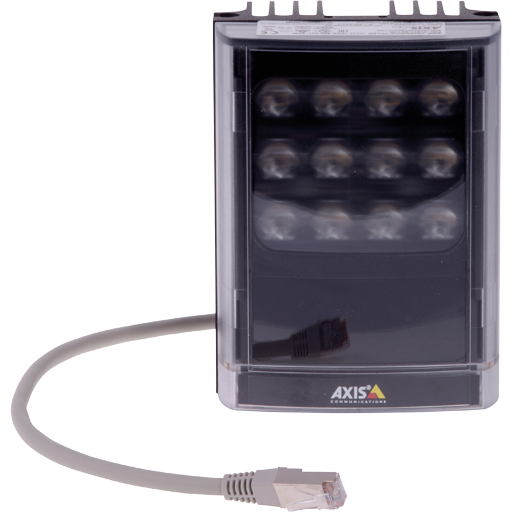

AXIS T90D20 PoE IR-LED Illuminator offers a quick and reliable installation with a plug-and-play twisted pair cable. Create a flexible and cost-effective system by connecting the PoE illuminator with any PoE midspans or switches from Axis.

Based on the latest LED technology, AXIS T90D20 PoE IR-LED delivers more light where it is needed. It generates longer infrared LED illumination distance, minimize light wastage, and prevent overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be optimized to match your network camera’s field of view. AXIS T90D20 Illuminator comes with a pre-mounted 10º diverging lens, and it includes diverging lenses of 35º, 60º and 80º beam angle. Moreover, an optional 120º diverging lens is available.

ordering

01211-001 AXIS T90D20 POE IR-LED, PoE powered IR LED illuminator for Axis network cameras. Included interchangeable diverging lenses providing 10°, 35°, 60° & 80° beam angles. Beam distance ranges 36m to 144m (118 ft to 472 ft). Made of IK09 impact-resistant aluminium and polycarbonate. IP66 and NEMA 4X ratings. Operating temperature -50°C to 50°C (-58 °F to 122 °F). PoE+ IEEE 802.3at required.

AXIS T90D20 PoE IR-LED datasheet

DOWNLOAD
