Description

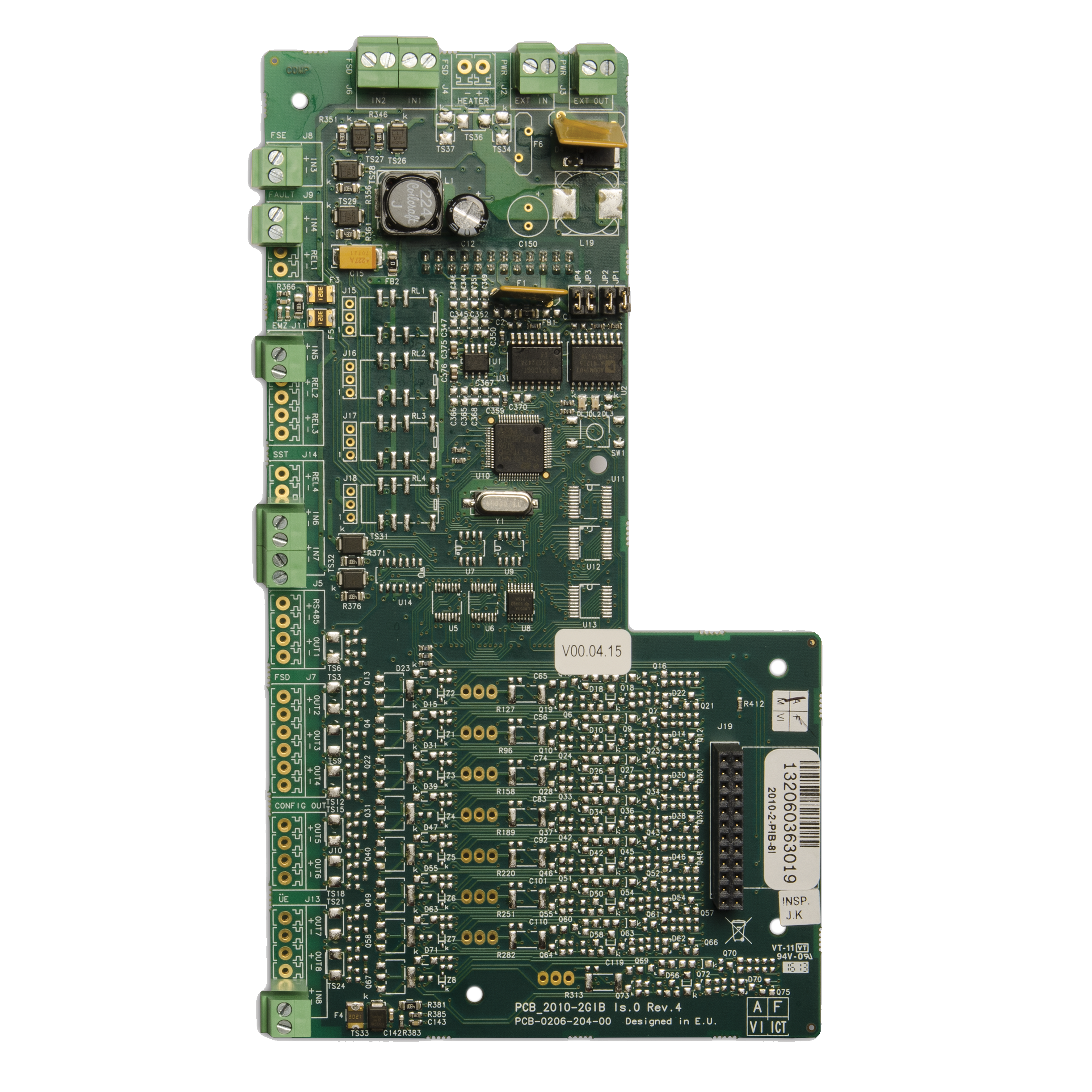

The 2010-2-PIB-8I Peripherals Interface Board 8 Inputs is an accessory of the small to medium size intelligent addressable life safety control systems. In total there are 4 variants of this board. It is a reduced variant of the 2010-2-PIB and is perfect if your only looking for having additional supervised inputs to interface other electronic equipment on site.

Mounting And Connections

The board can be plugged directly on the front of the main board inside the big size control panel variants on top of the new release 3 chassis. No additional wiring is required. You can use the pluggable connectors to make your connections to the field wiring. Connect an external power supply to the board directly to reduce the load of your system.

Functionality

The 2010-2-PIB-8I Peripherals Interface Board provides eight inputs for compatible control panels. Inputs and outputs are supervised for short circuit and open circuit faults.
